Hunter-Healey Twin Cam Head Drawings
The drawings below are a faithful reproduction of a series of design drawings by Harold Hunter for a twin overhead cam head to suit the Austin Healey 100 . The drawings depict more than one design for various components of the assembly. Unfortunately I have not had access to any of the completed heads, so I cannot comment on which (if any) of the designs shown here were produced.
File Name Size Description

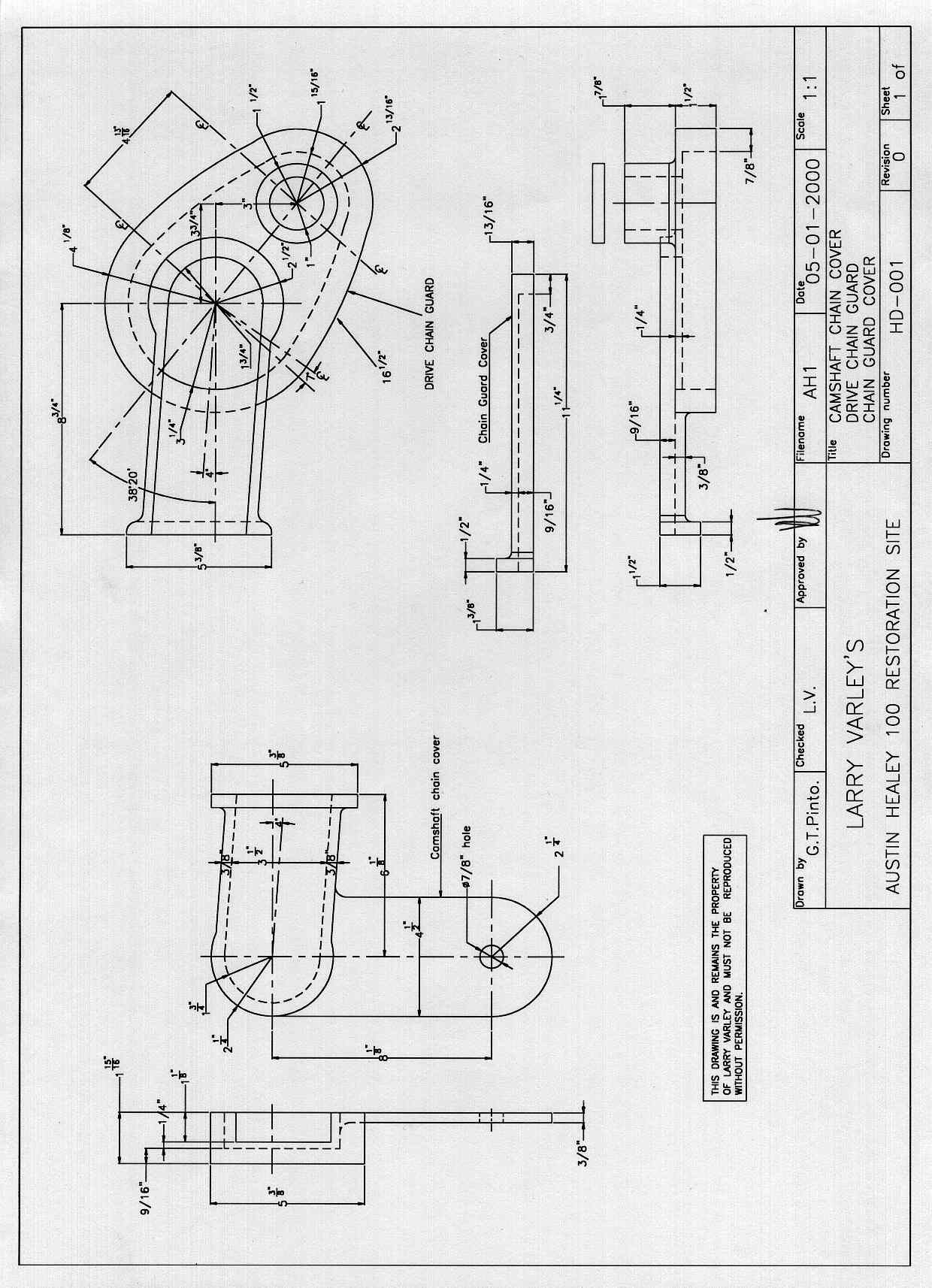

AH1.jpg 155kb Chain Covers

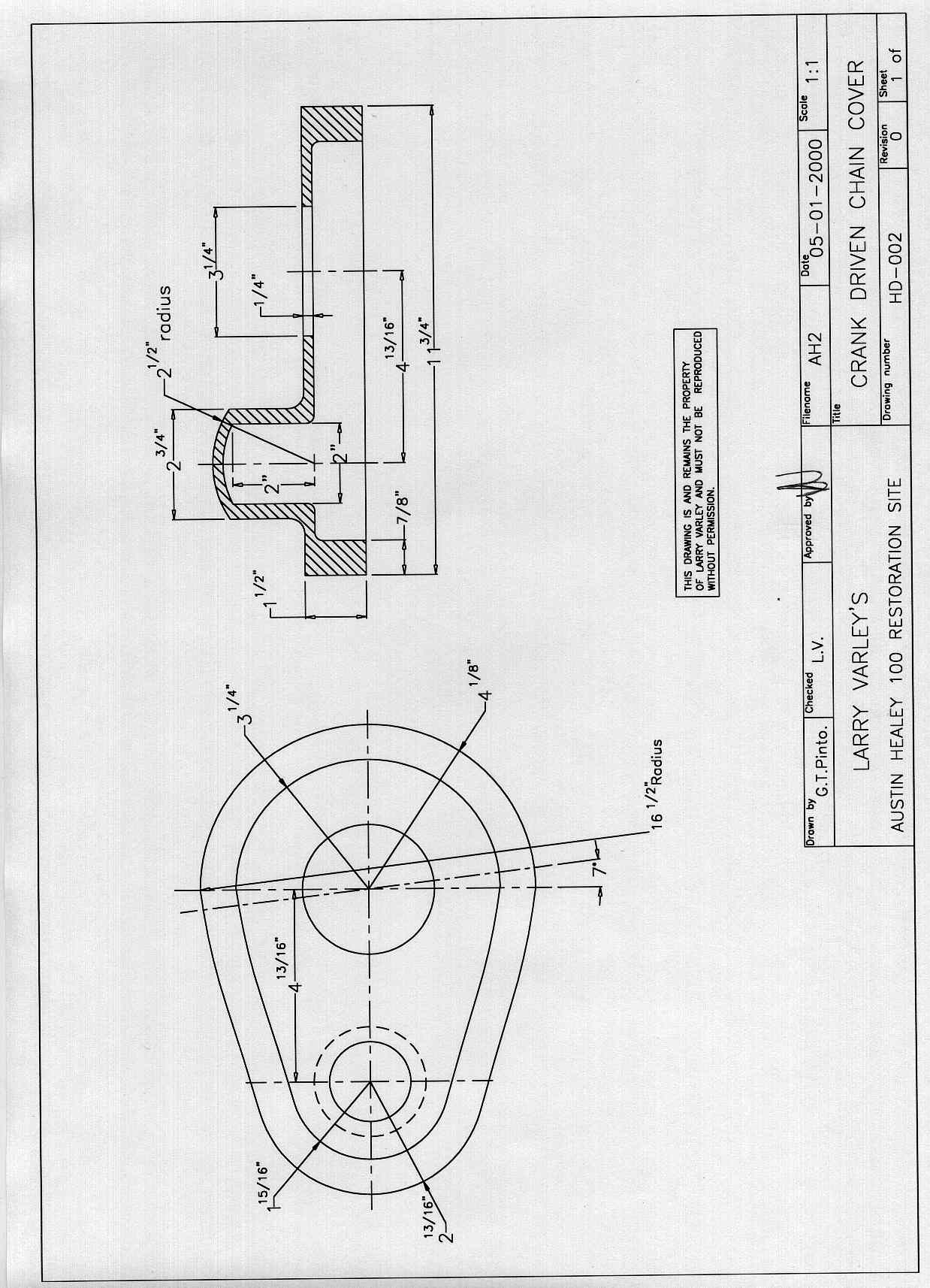

AH2.jpg 138kb Chain Cover

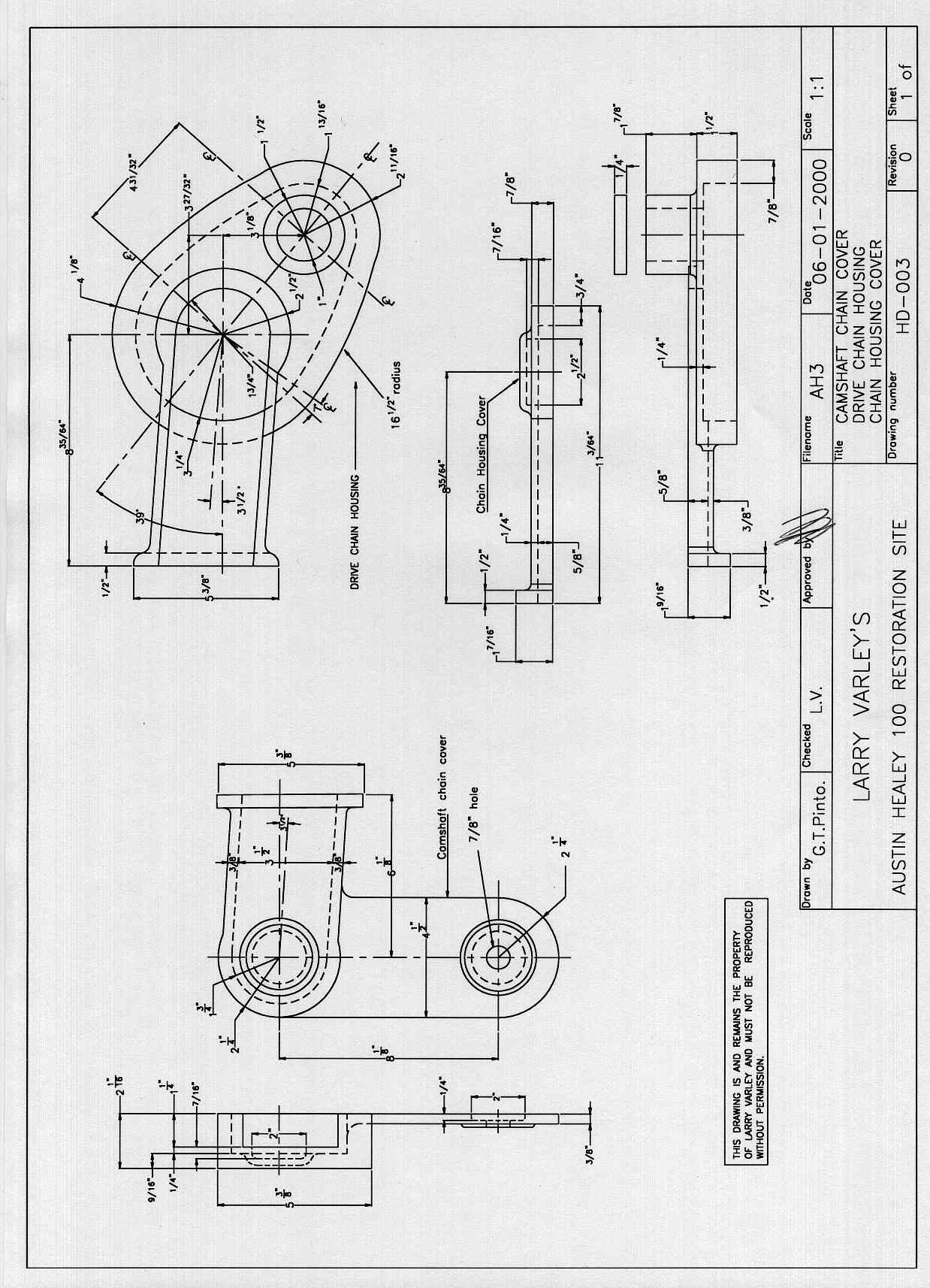

AH3.jpg 160kb Chain Covers

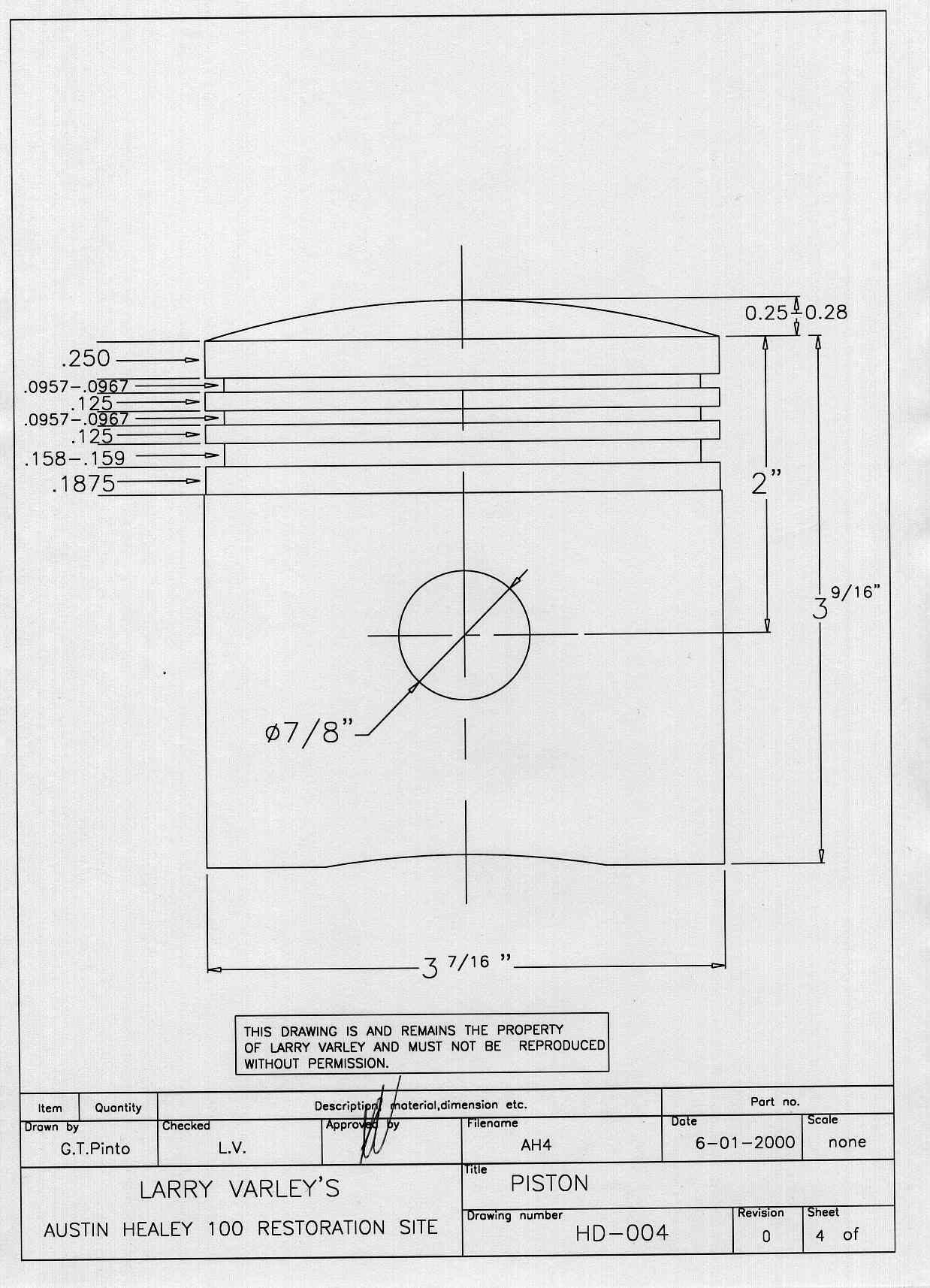

AH4.jpg 127kb Piston

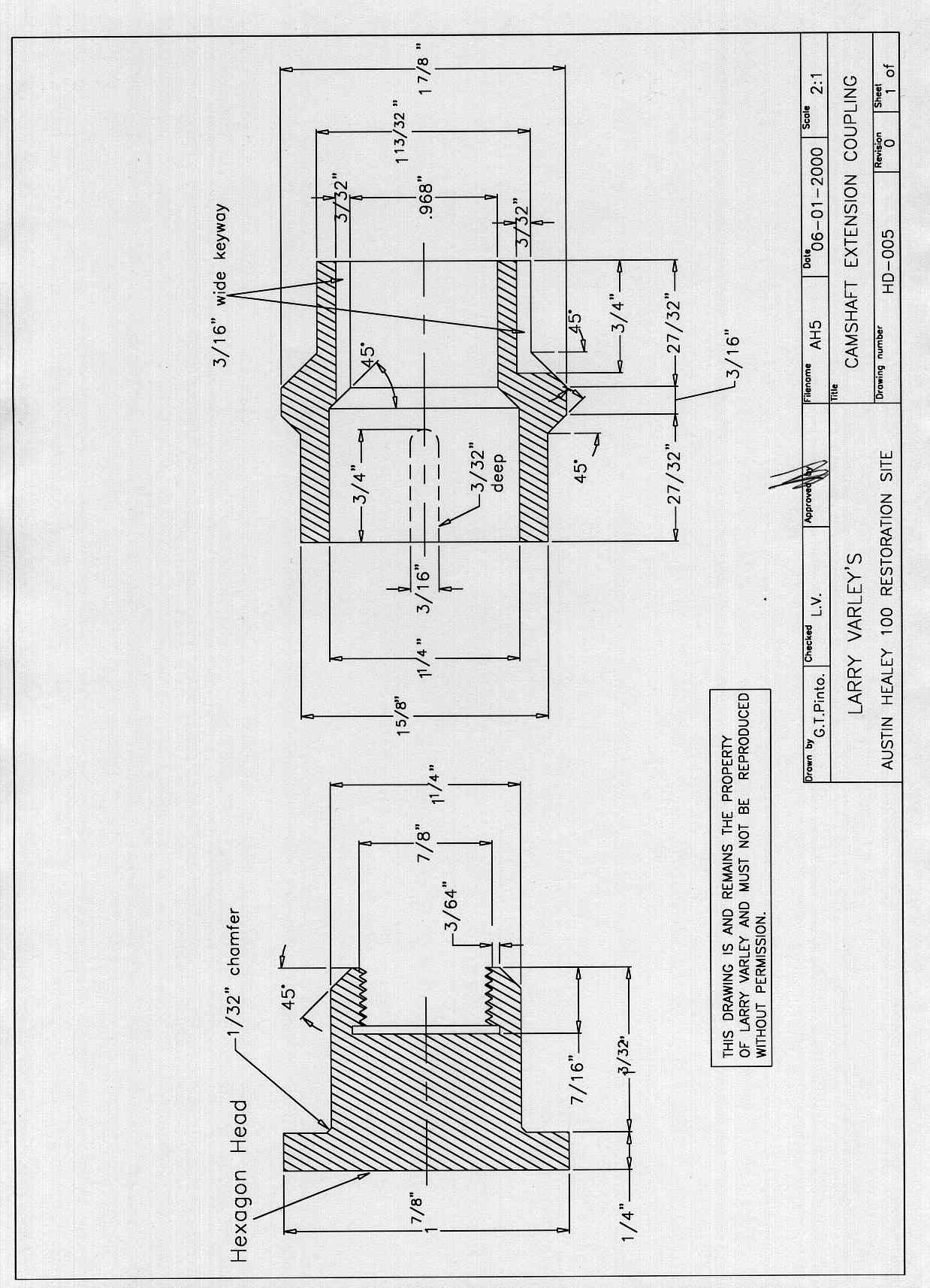

AH5.jpg 152kb Camshaft Extension Coupling

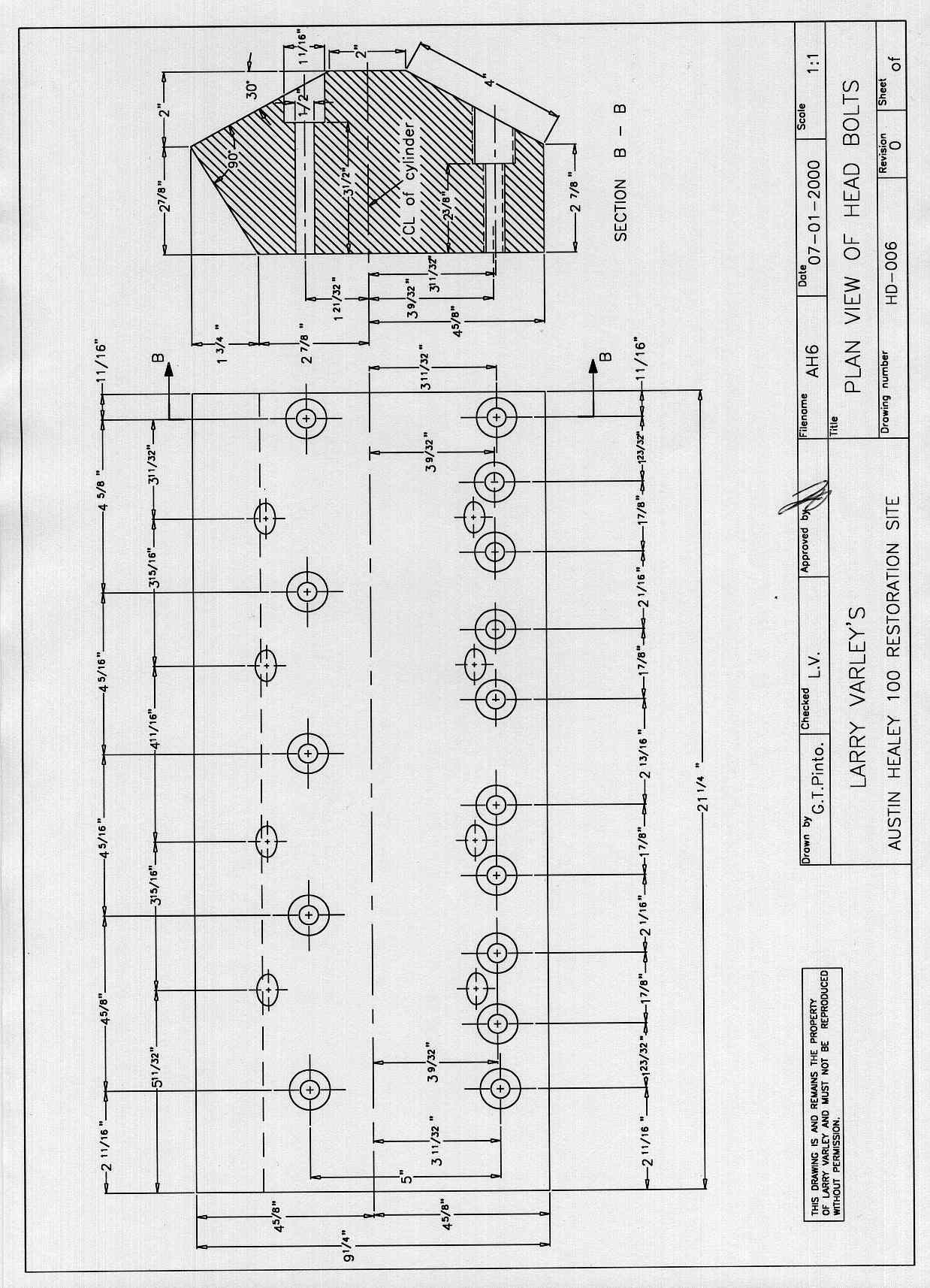

AH6.jpg 173kb Plan View of Head Bolts

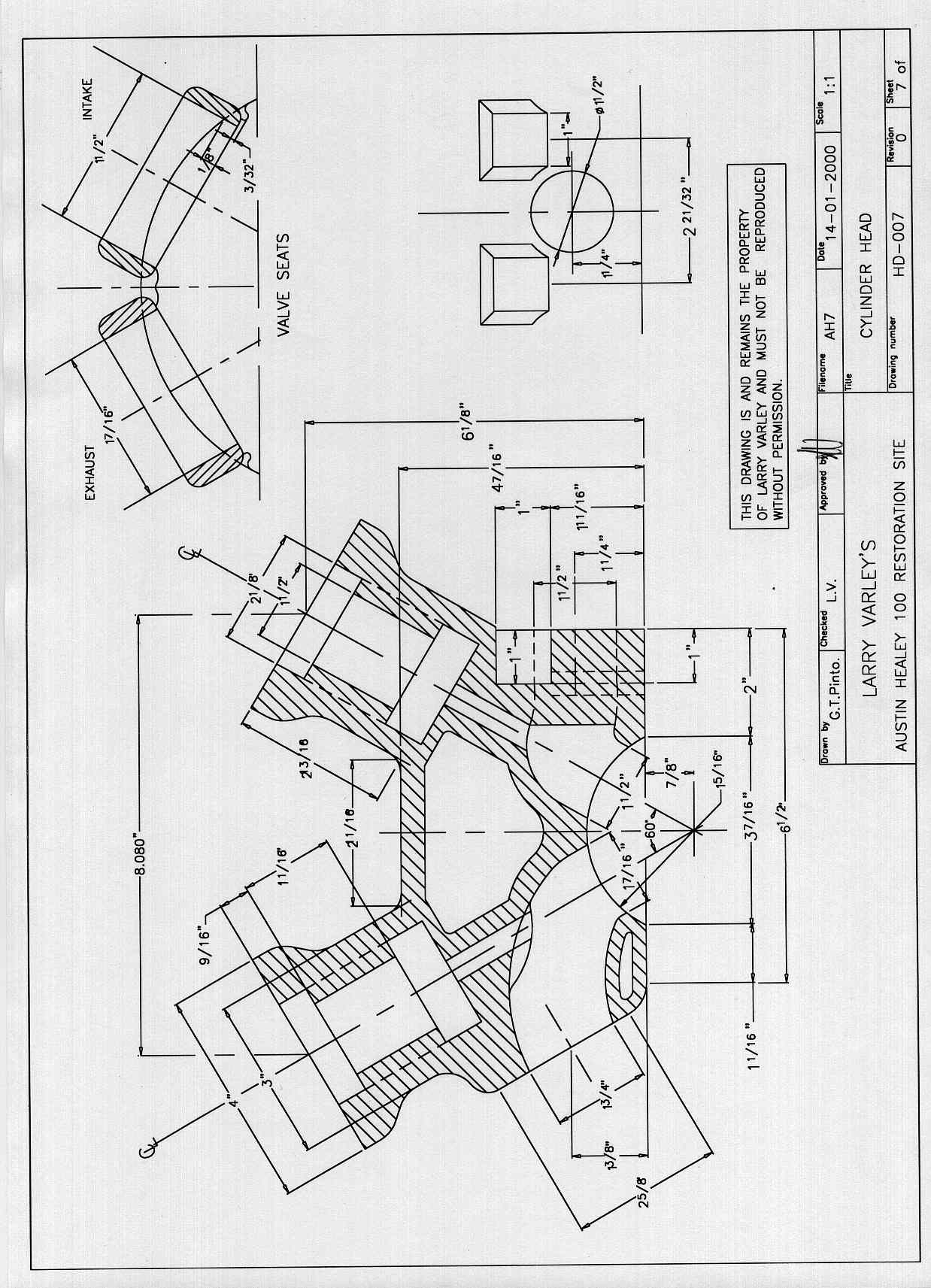

AH7.jpg 176kb Cylinder Head

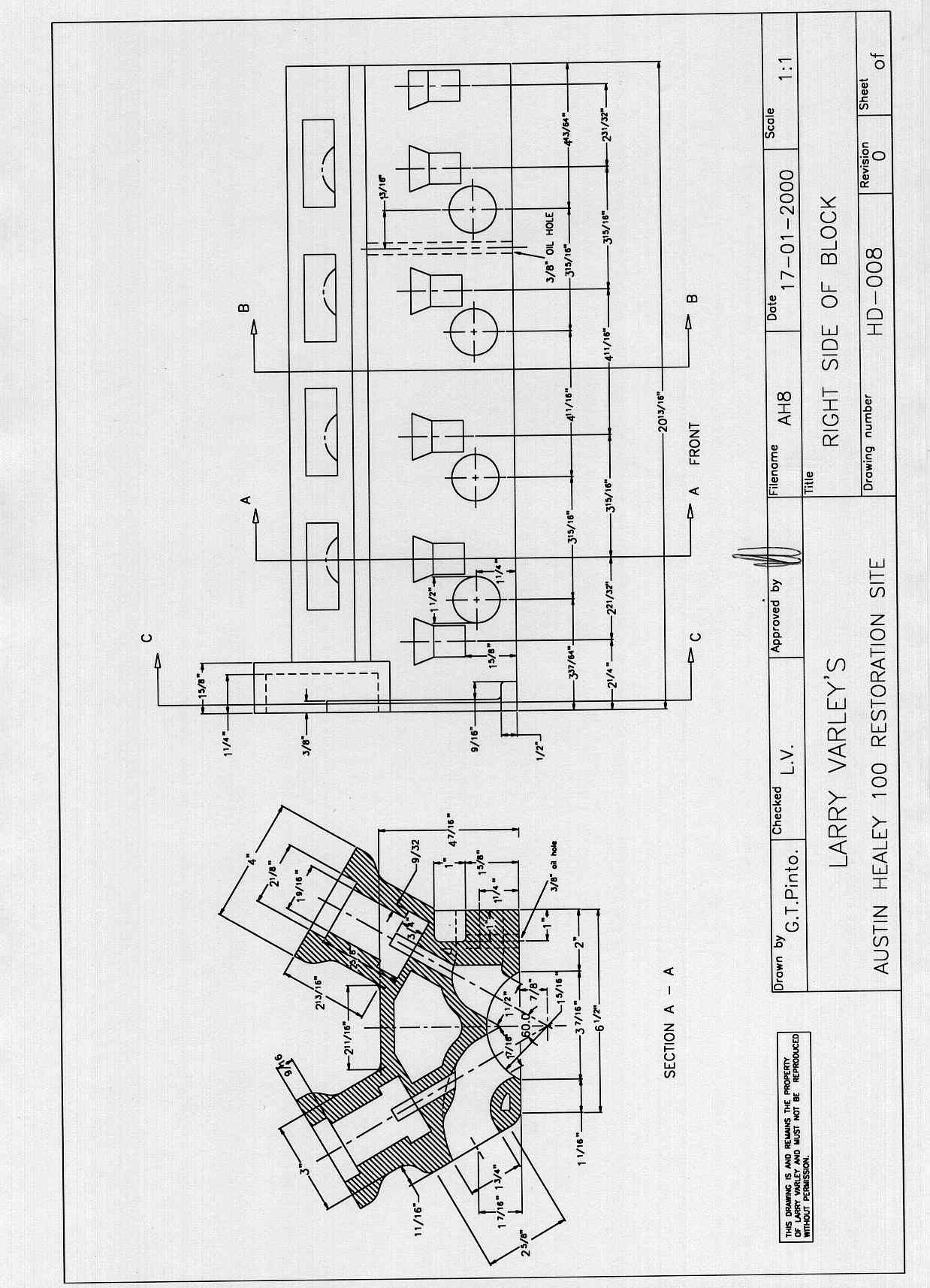

AH8.jpg 159kb Right Side of Block

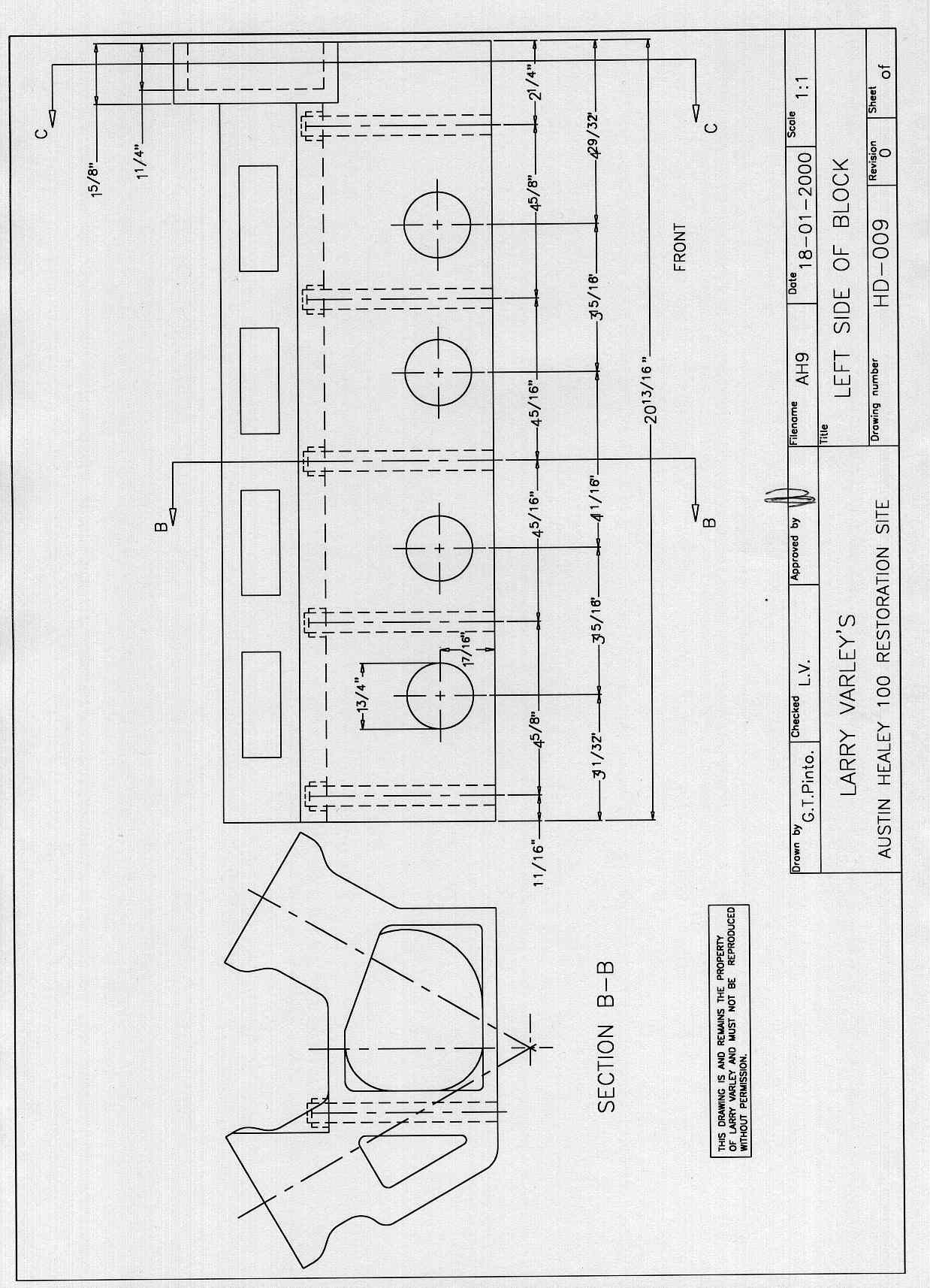

AH9.jpg 146kb Left Side of Block

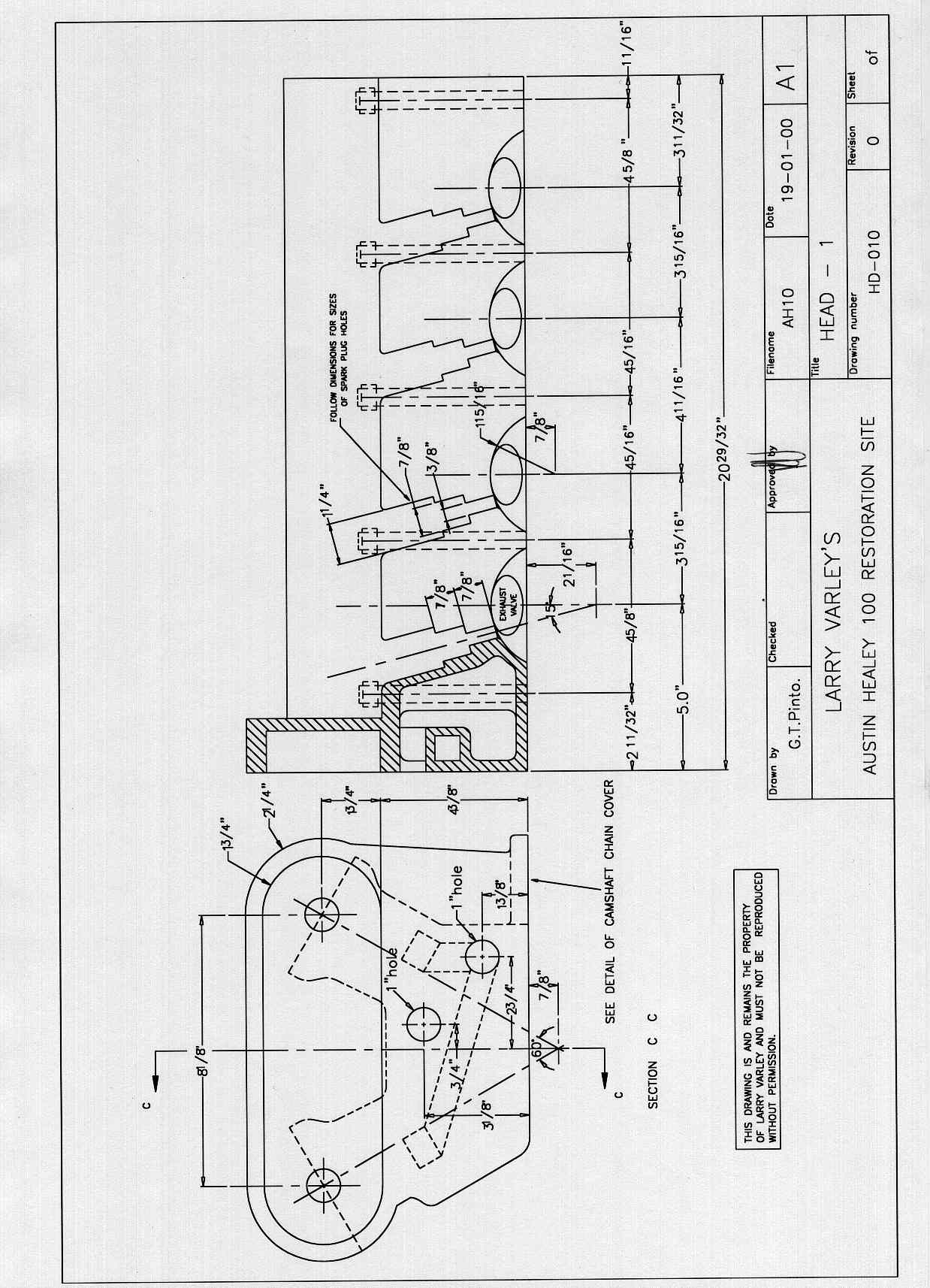

AH10.jpg 157kb Head
AH11.jpg 164kb Head

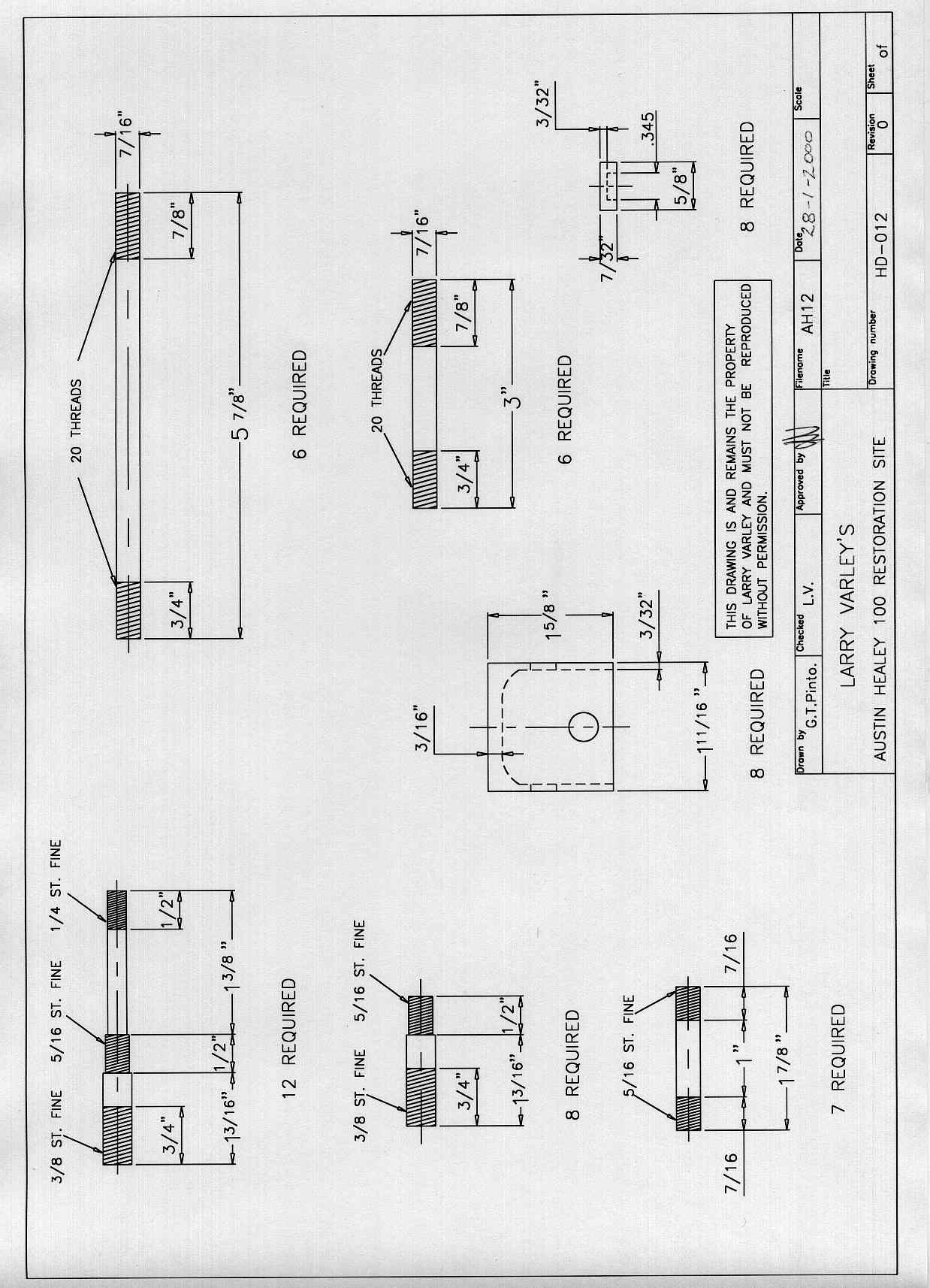

AH12.jpg 140kb Components

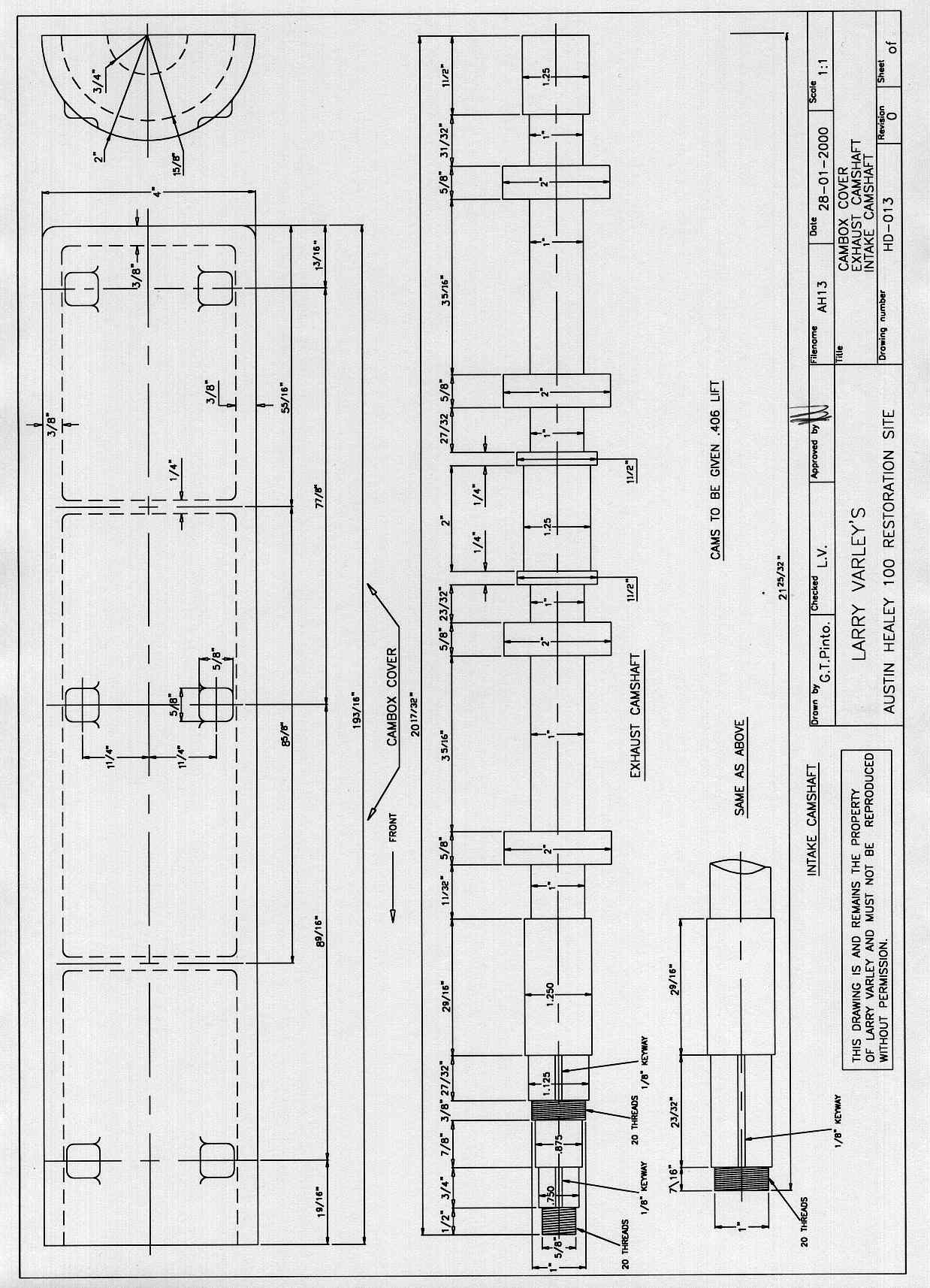

AH13.jpg 170kb Cams Cambox

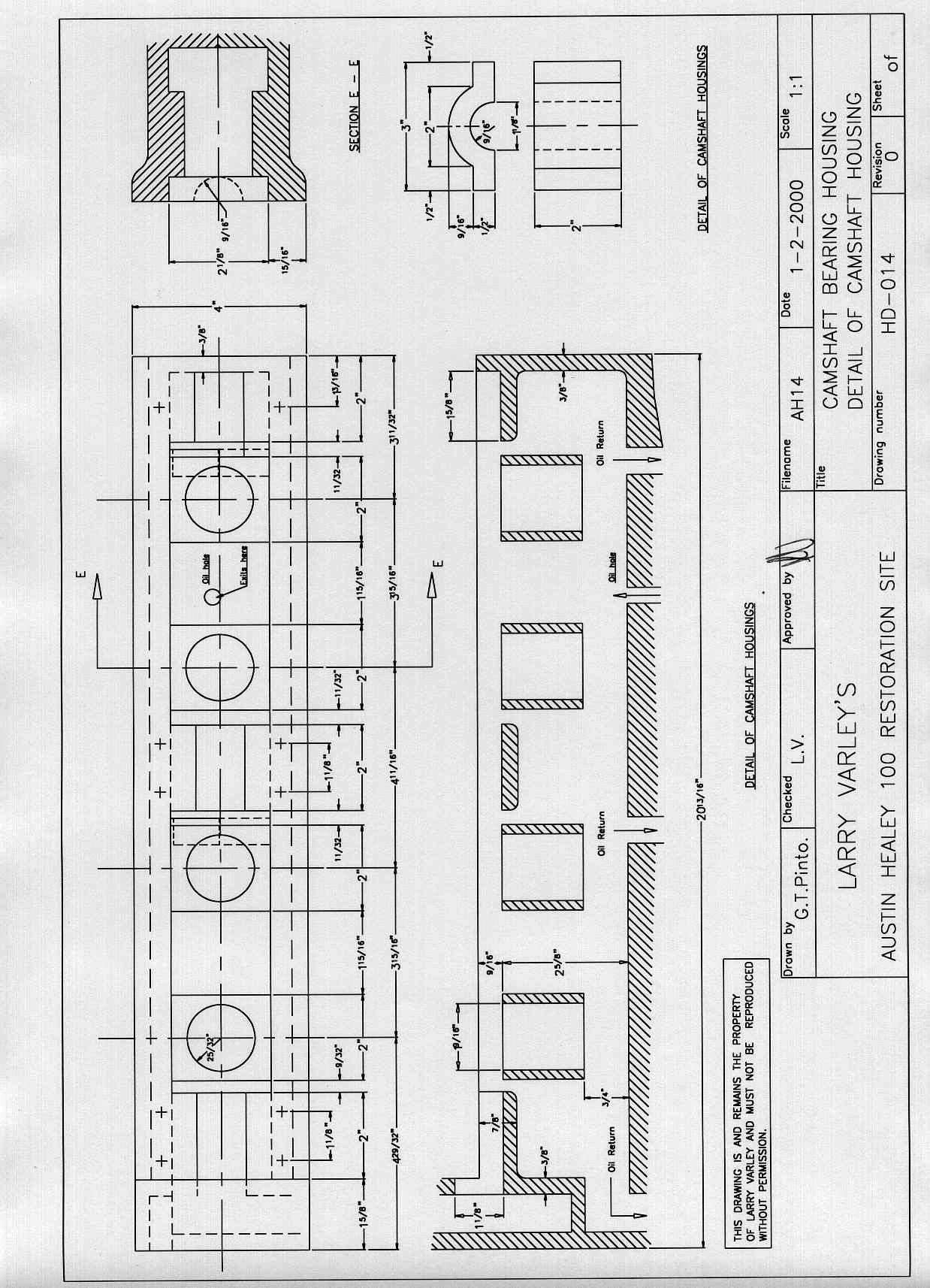

AH14.jpg 184kb Camshaft Bearing Housing

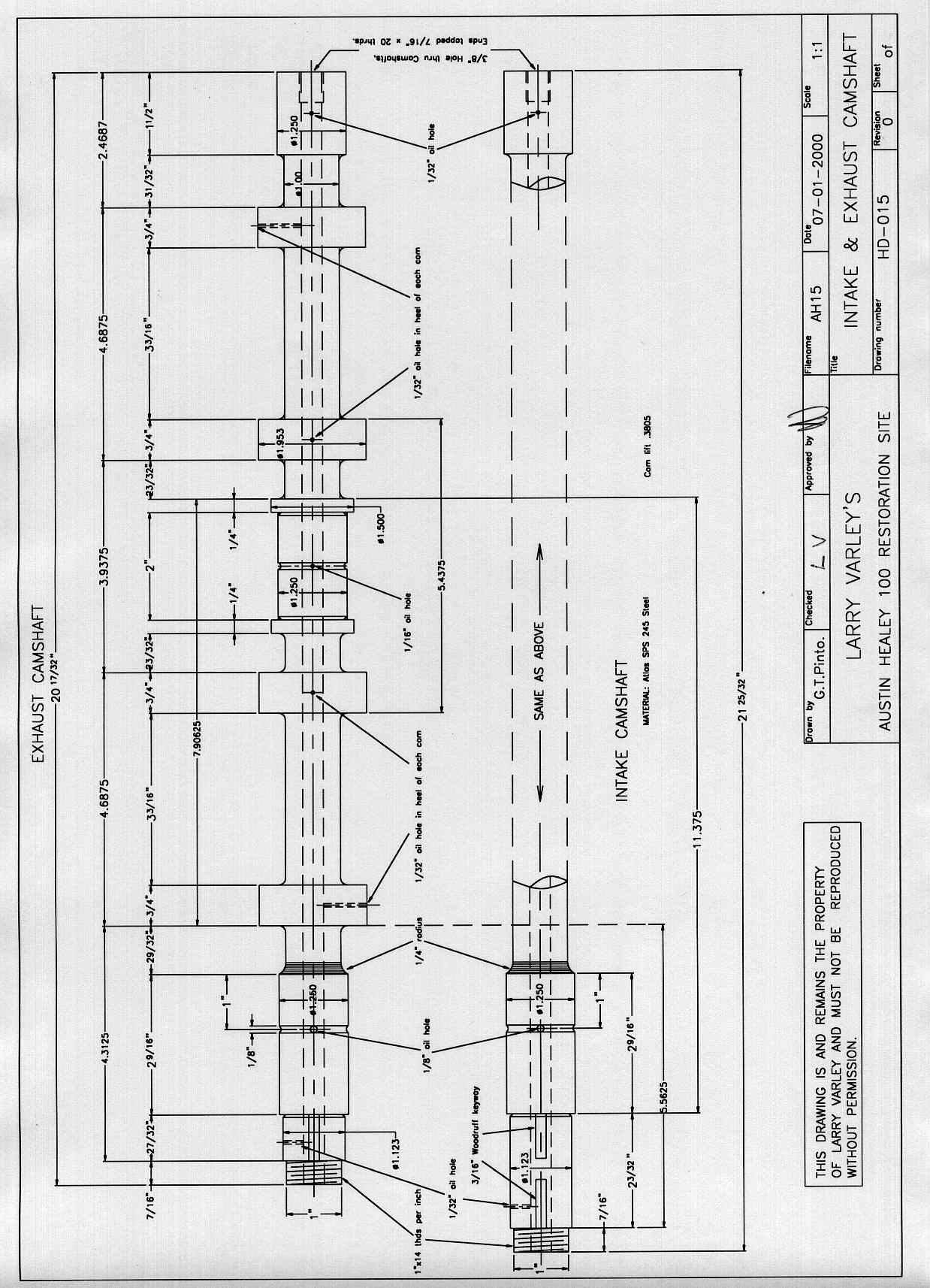

AH15.jpg 163kb Intake and Exhaust Camshaft

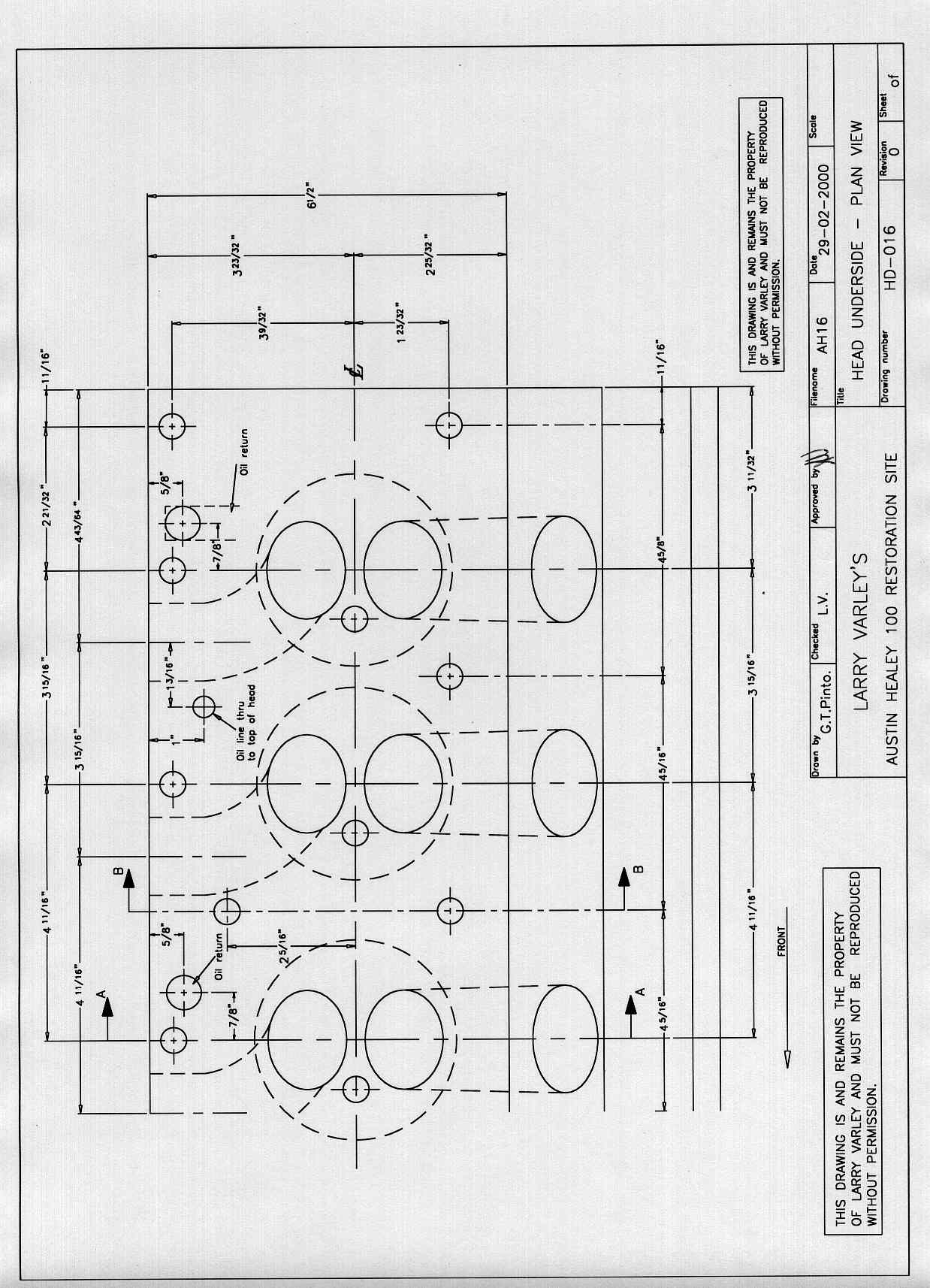

AH16.jpg 154kb Head Underside

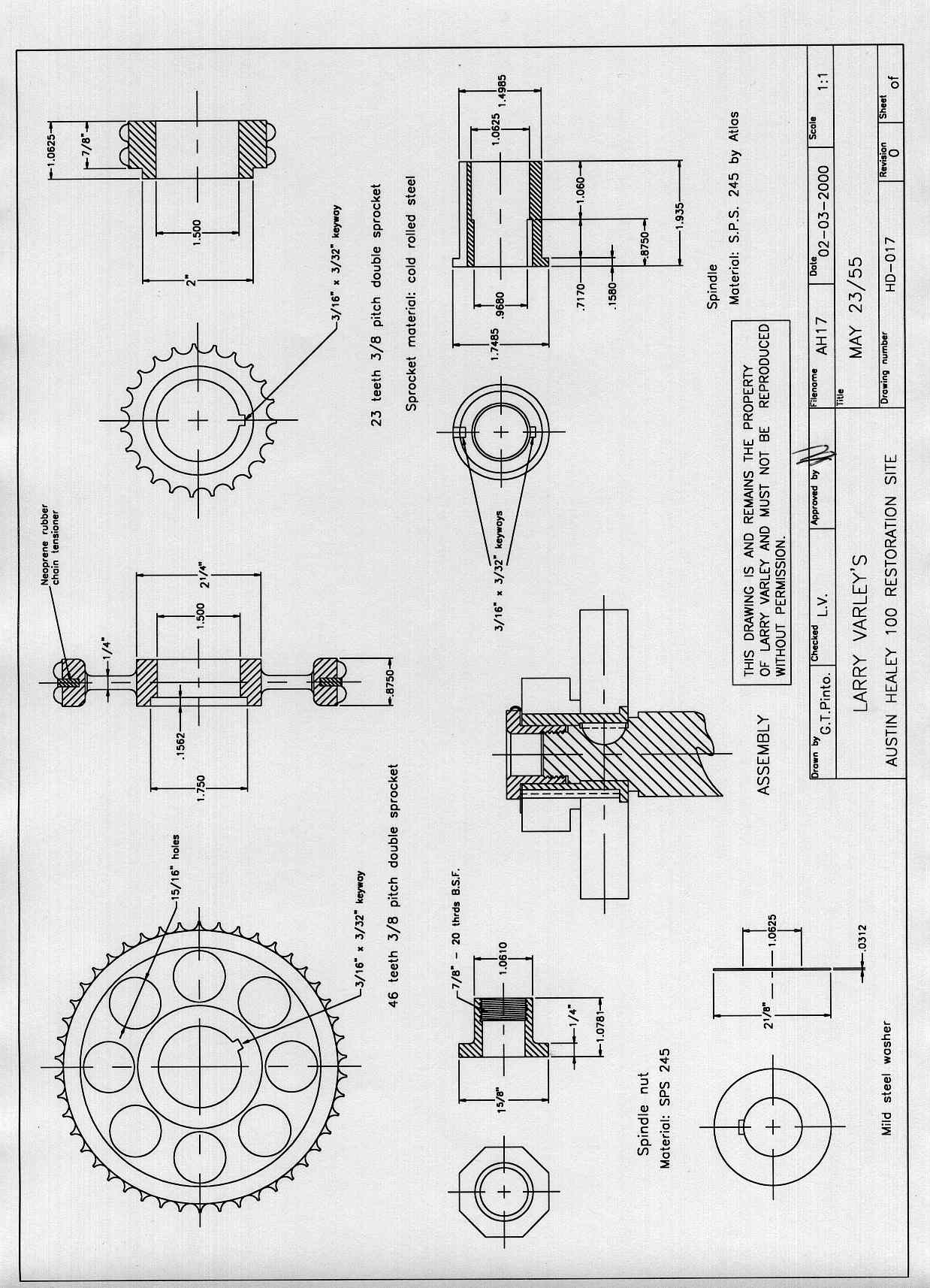

AH17.jpg 167kb Dated May 23 - 1955

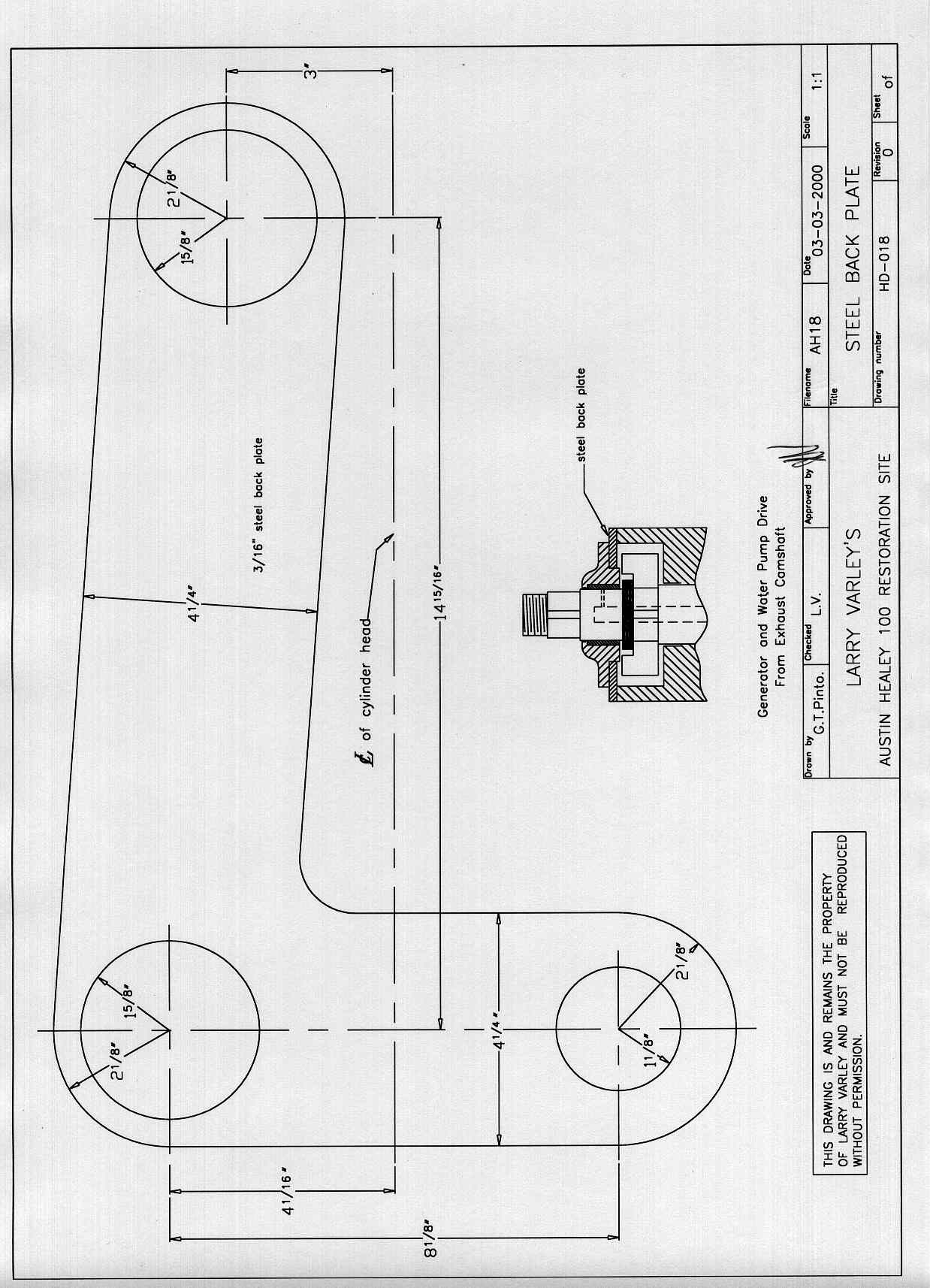

AH18.jpg 135kb Steel Back Plate

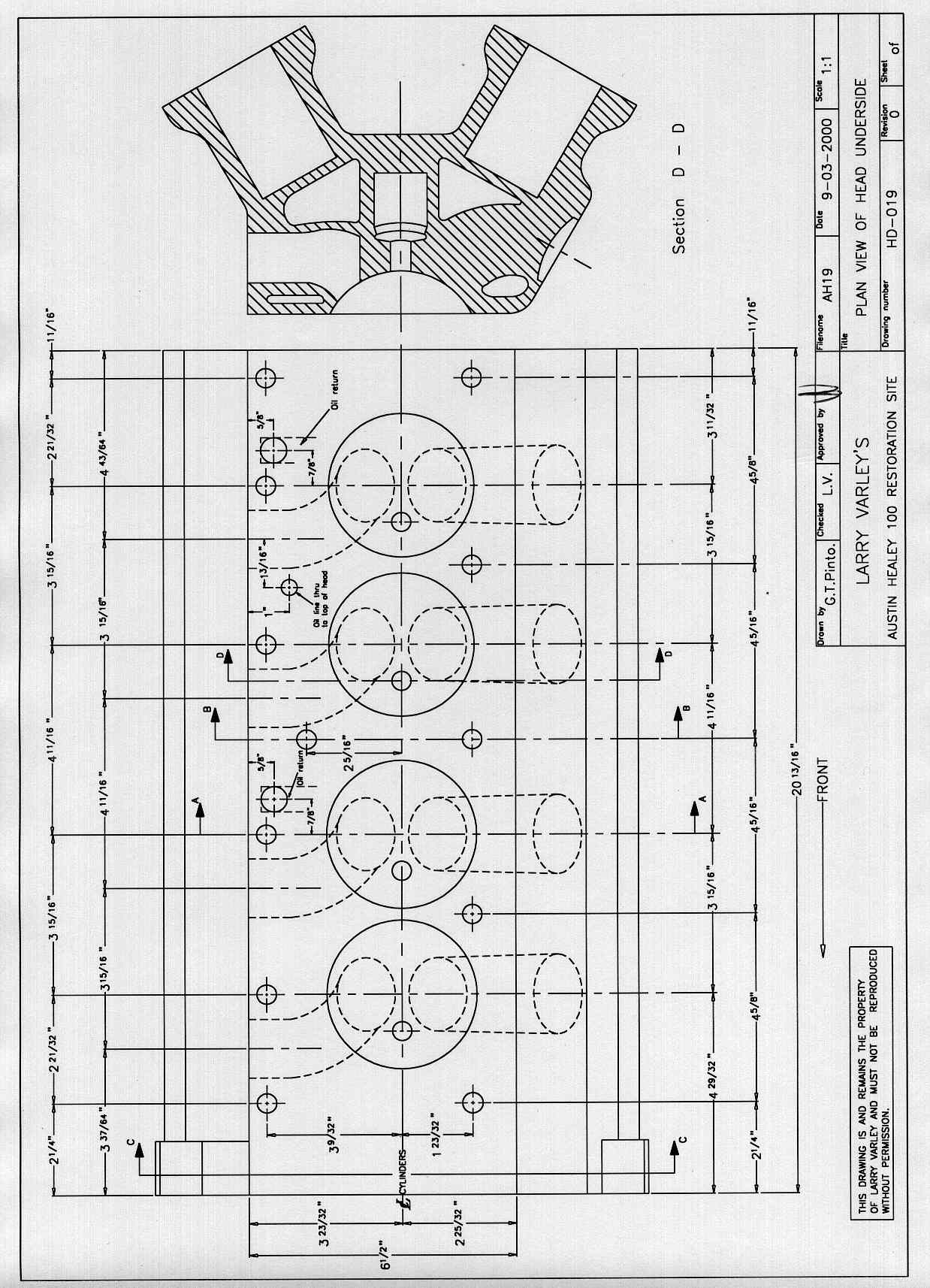

AH19.jpg 185kb Head Underside

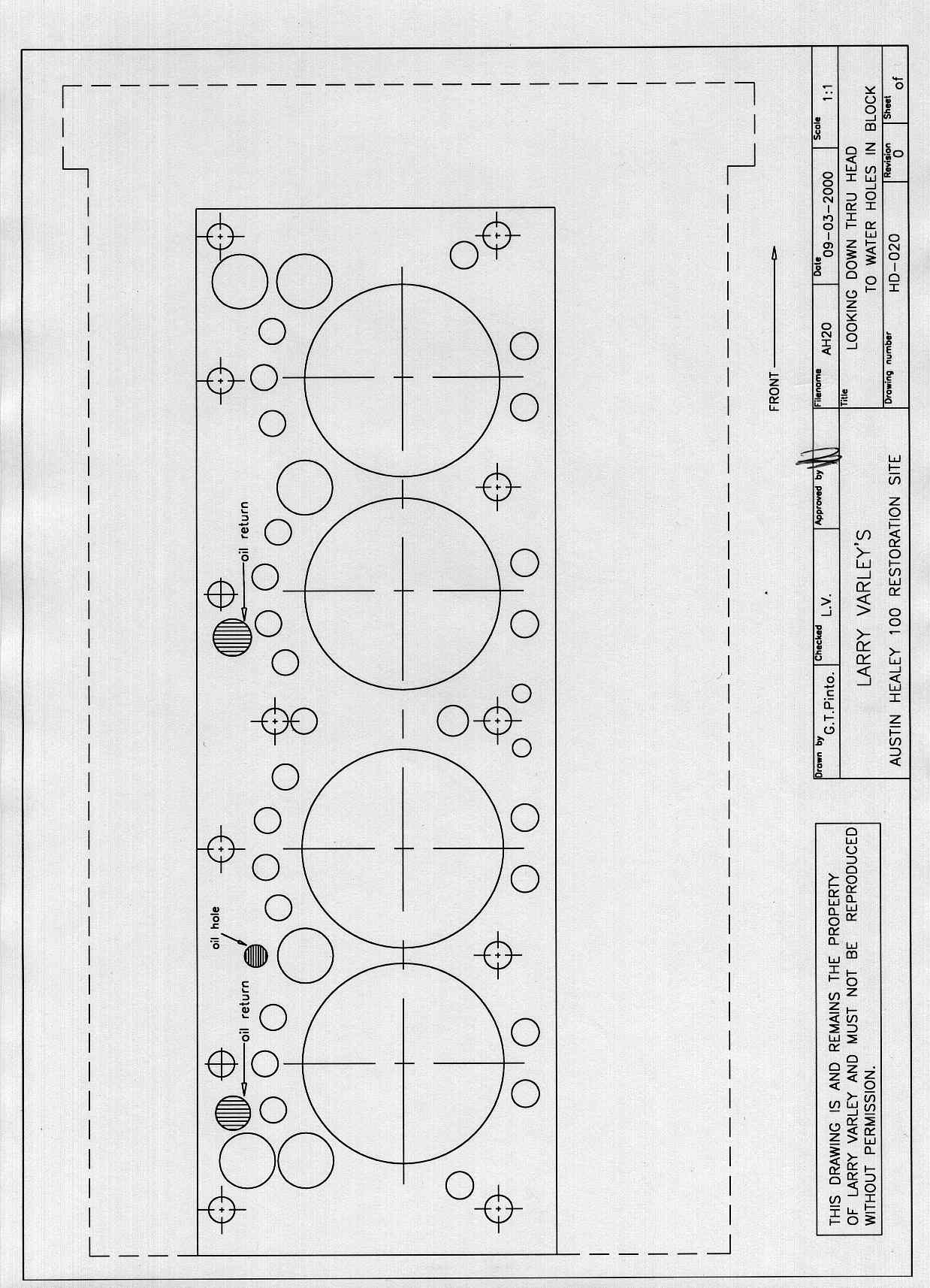

AH20.jpg 147kb Water Holes in Block

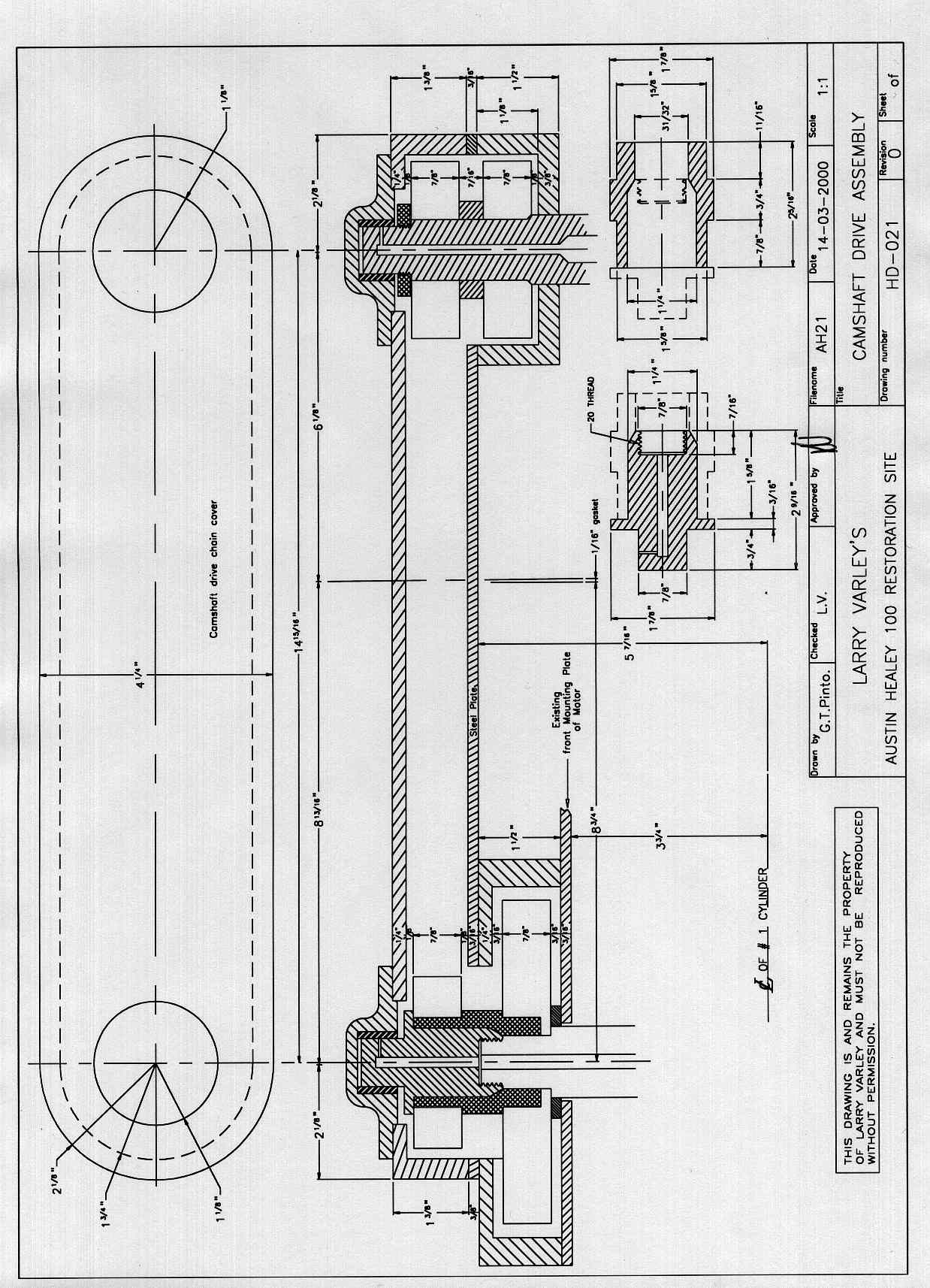

AH21.jpg 200kb Camshaft Dive Assembly

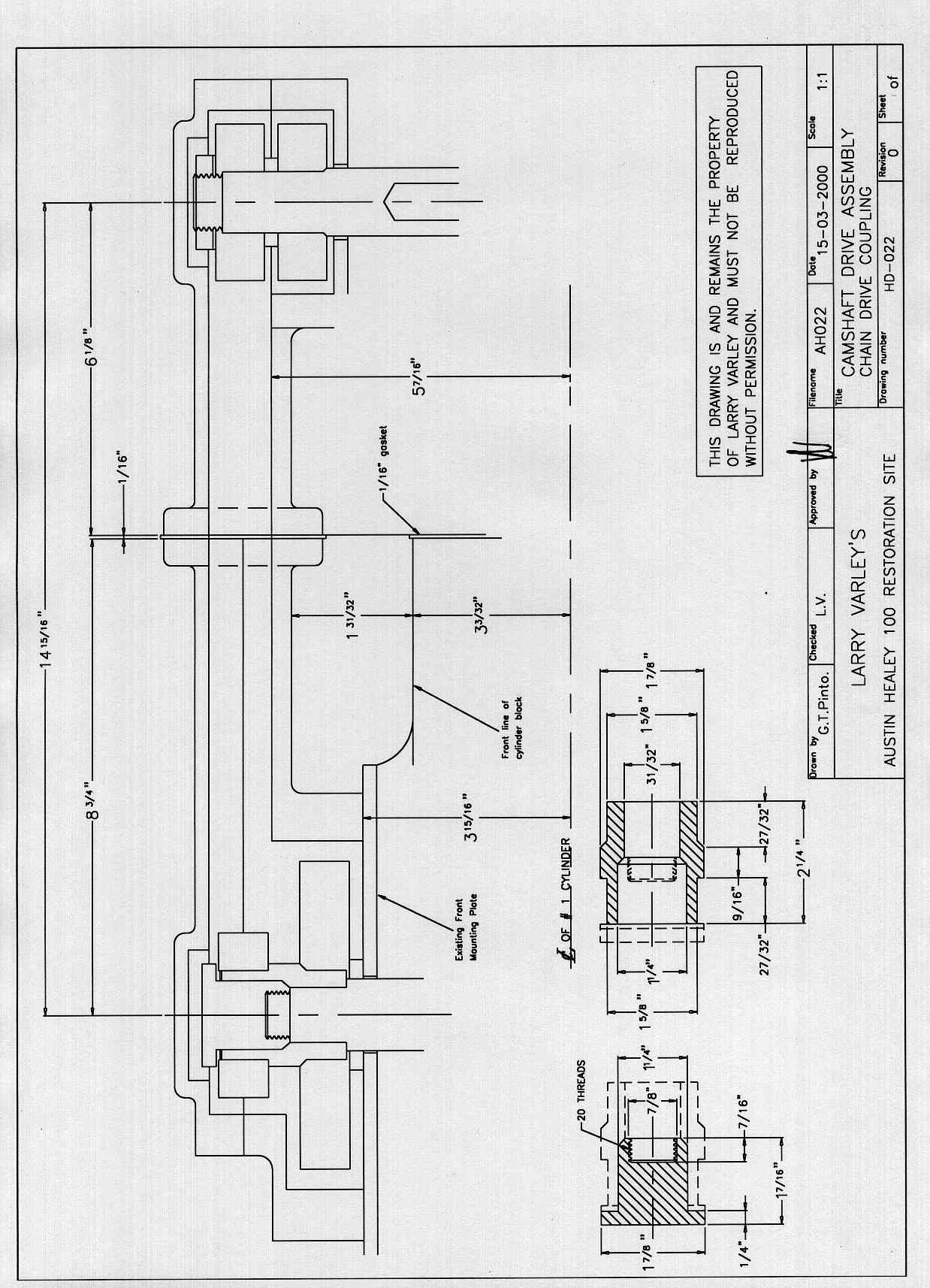

AH22.jpg 154kb Camshaft Drive Assembly

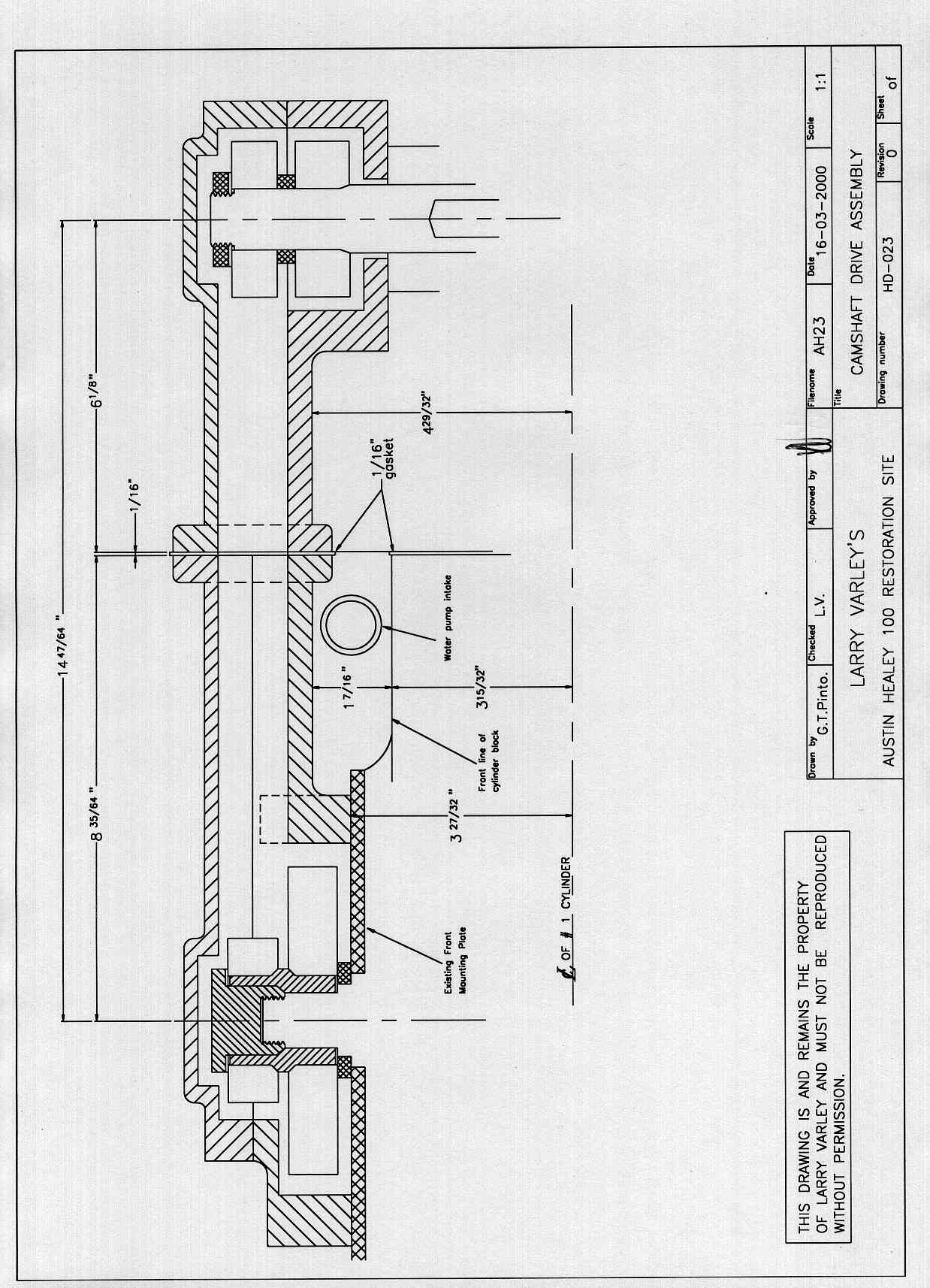

AH23.jpg 159kb Camshaft Drive Assembly

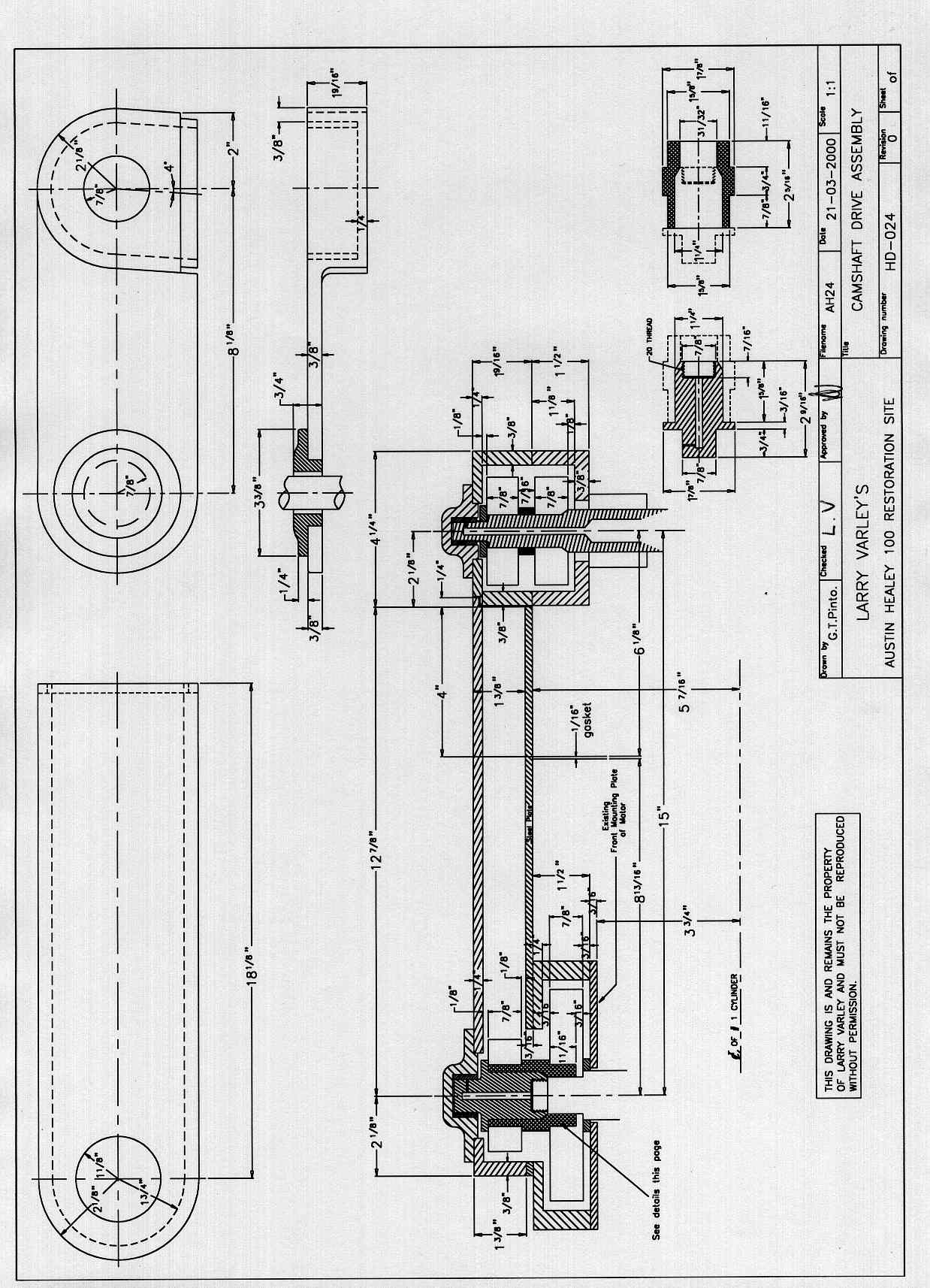

AH24.jpg 184kb Camshaft Drive Assembly

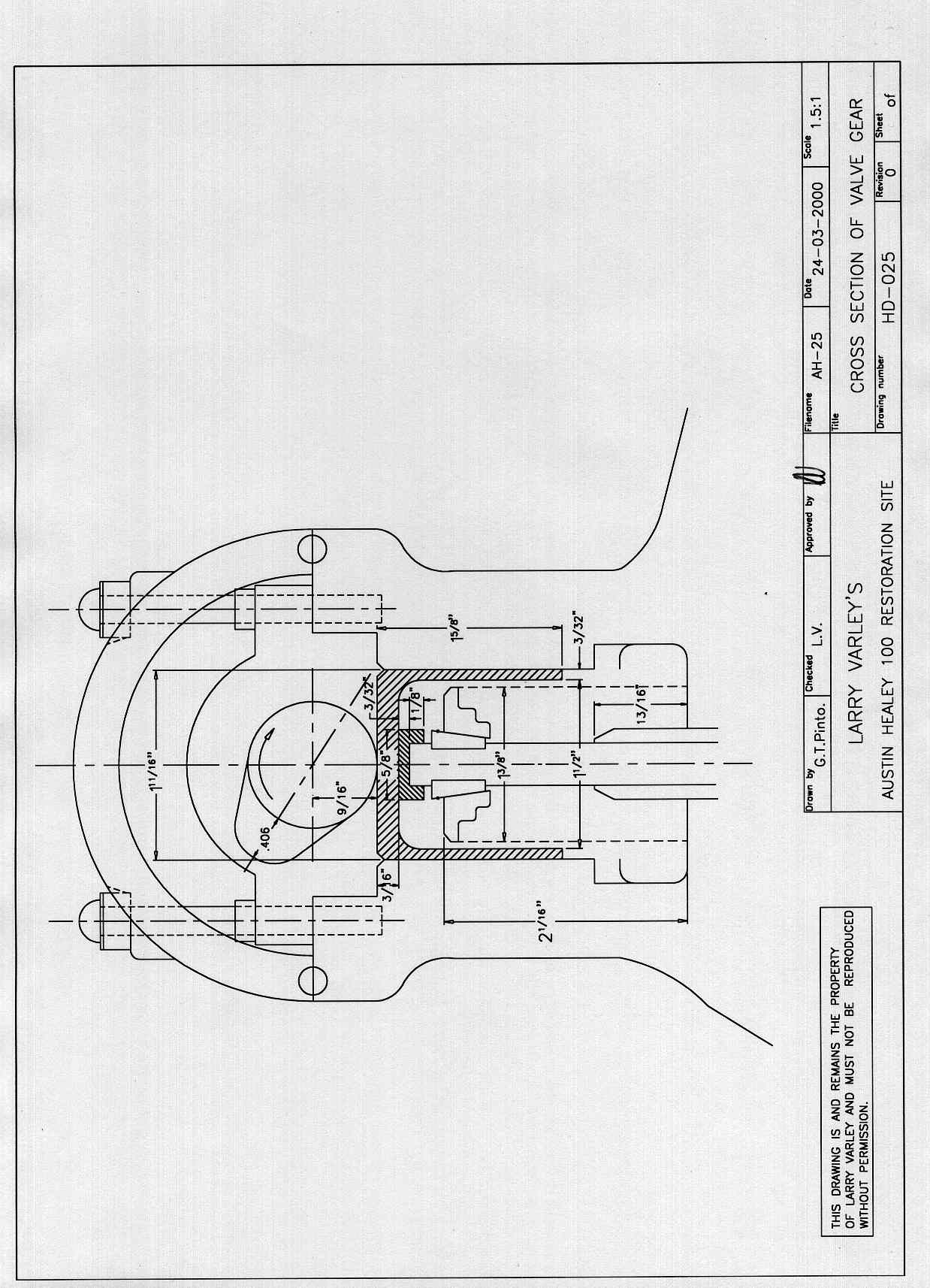

AH25.jpg 140kb Cross Section Of Valve Gear

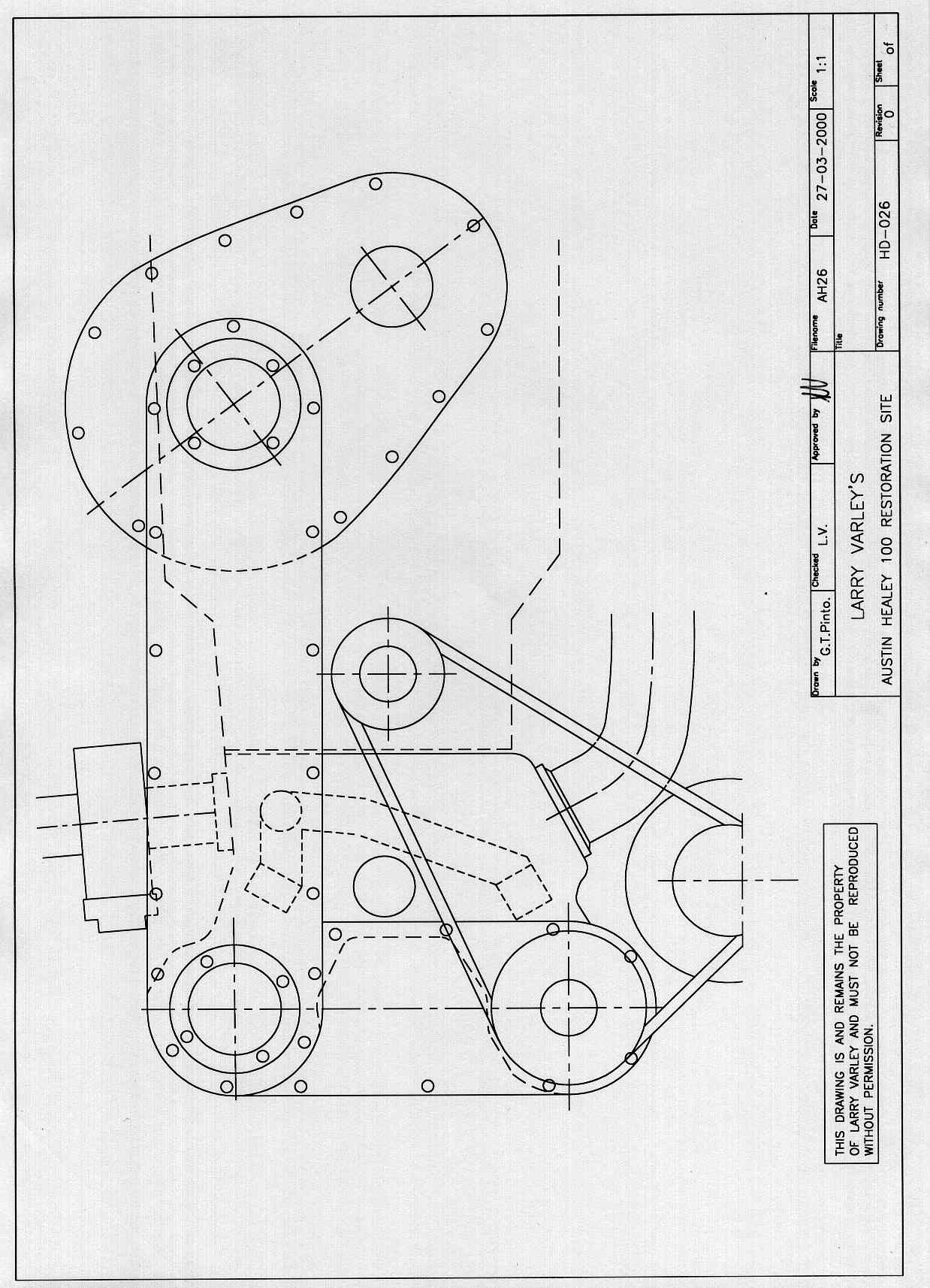

AH26.jpg 150kb Layout Drawing

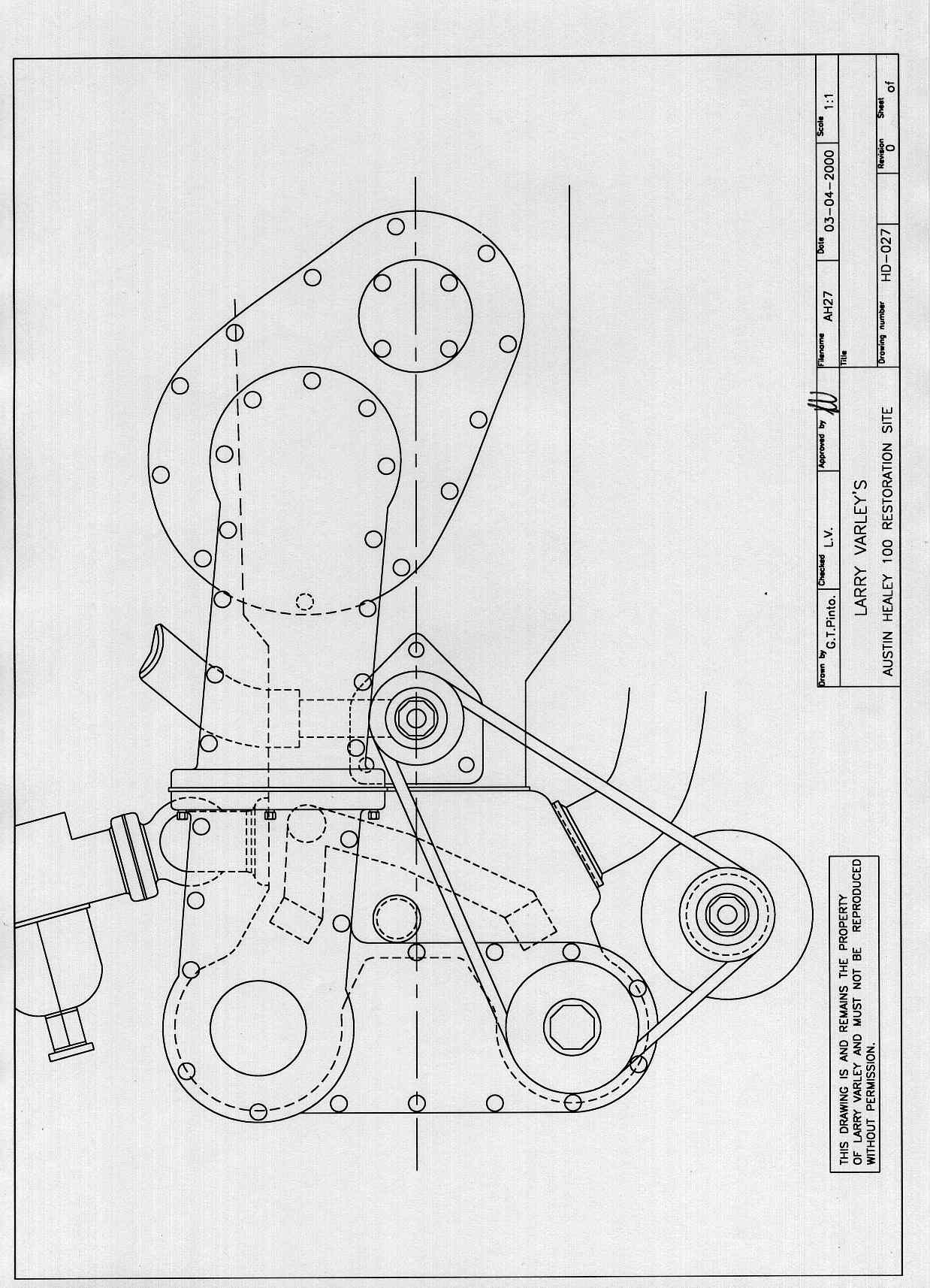

AH27.jpg 154kb Layout Drawing
